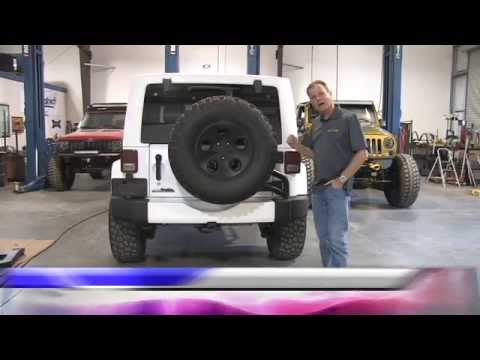

2007-2015 JEEP WRANGLER JK HDX REAR TIRE CARRIER BUMPER Installation Video




2007-2015 JEEP WRANGLER JK HDX REAR TIRE CARRIER BUMPER


83269          Wrinkle Black
83269BB     Bike Black
83269R        Raw


This rear bumper is constructed from 3/16" steel plate to provide superior trail protection. It utilizes 1/2" thick steel frame mounting brackets and comes with all necessary hardware. The sleek tapered design easily slides off rocks and extends to protect your Jeep's rear quarter panels during extreme departure angles. The bumper comes with mounting hardware and two D-ring shackles.

OR-Fab's Spare Tire Carrier's One-Stepper feature is convenient for when you're trying to open the tailgate with one hand and your other hand is occupied with precious cargo. Rather than fumbling with a latched assembly and a "run-away" carrier, the HDX carrier is connected to the tailgate so they're able to open and close simultaneously. The meticulously designed One-Stepper feature keeps the two pieces synced when opening yet solid and rattle-free when closed.

The Tire Carrier is fabricated from CNC laser cut and formed steel plate and includes our High-Output LED third brake light. Our Bomb-Proof HDX pivot assembly includes a CNC machined spindle and housing, with a pair of Timken tapered roller bearings to provide smooth operation under the most extreme abuse. The pivot assembly is capped with a CNC machined billet aluminum cap with our OR-Fab Logo machined. The tire mount is adjustable in and out to accommodate a wide variety of tire sizes up to 37".

It's available in either a wrinkled or gloss black, heavy-duty powder coat finish.

Features at a glance:

• Designed to enhance your off road experience by protecting the rear and lower quarter panels of your Jeep from obstacles you will encounter off-road.
• Bumper is NOT compatible with body lifts
• Manufactured using 1/2" plate for bumper mounting brackets and 3/16" plate on main shell giving you the quality you expect from OR FAB.
• Stylish and rugged Sheet Metal design with tapered sides and bottom, slides easily off obstacles giving you added confidence to tackle the trail.
• Includes welded in D-Ring mounts and two D-Ring shackles.
• One-Stepper feature for easy opening and closing convenience.
• Bomb-Proof pivot spindle and housing assembly.
• High-Output LED third brake light and wire harness included.
• Available in Textured Wrinkle Black, Gloss Black powder coat finish
• Also Available in Raw for those that wish to paint to match

----------------------------------------------------------------------------------------------

Optional Hi-Lift Jack Mount for 83269 Bumper Tire Carrier

87069     Wrinkle Black
87069BB   Bike Black

The OR-Fab Hi-Lift Jack Mount allows you to easily mount a Hi-Lift Jack to your OR-Fab HDX Rear Bumper/Tire carrier for the Jeep Wrangler JK. Mounting Kit comes with mount, foot clamp, clamp tab,urethane mount pad, threded wing nuts, button head mounting screw and lock nuts. Available in Textured Wrinkle Black or Glossy Bike Black
Features at a glance:

• Securely mounts to Hi Litft Jack to carrier arm
• Easily installs within a few minutes
• Hardware include
